PDS-6921

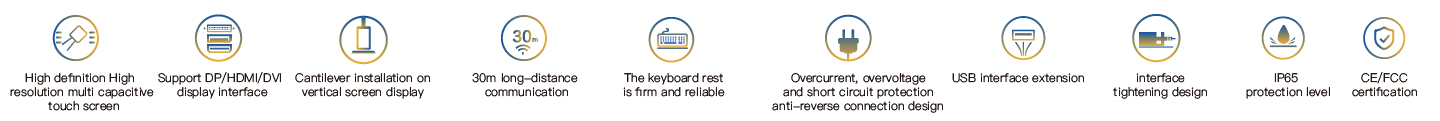

The PDS-6921 is a vertical industrial touch panel with an upper cantilever installation. It is equipped with operation buttons and a keyboard stand, featuring a 21.5 "high-definition LCD screen with a resolution of 1920x1080 and a projected multi-touch capacitive screen. It supports three signal transmission interfaces: HDMI, DVI and DP, as well as multiple USB2.0 interface expansions. The maximum communication distance between the PC and the touch panel can reach 30 meters, and the entire machine is powered by DC24V. The front panel has an IP65 protection rating. All interfaces are designed with fastening and have passed CE/FCC certification, making it suitable for demanding human-machine interaction industrial sites.

Product manual（PDF） Technical data Ordering information

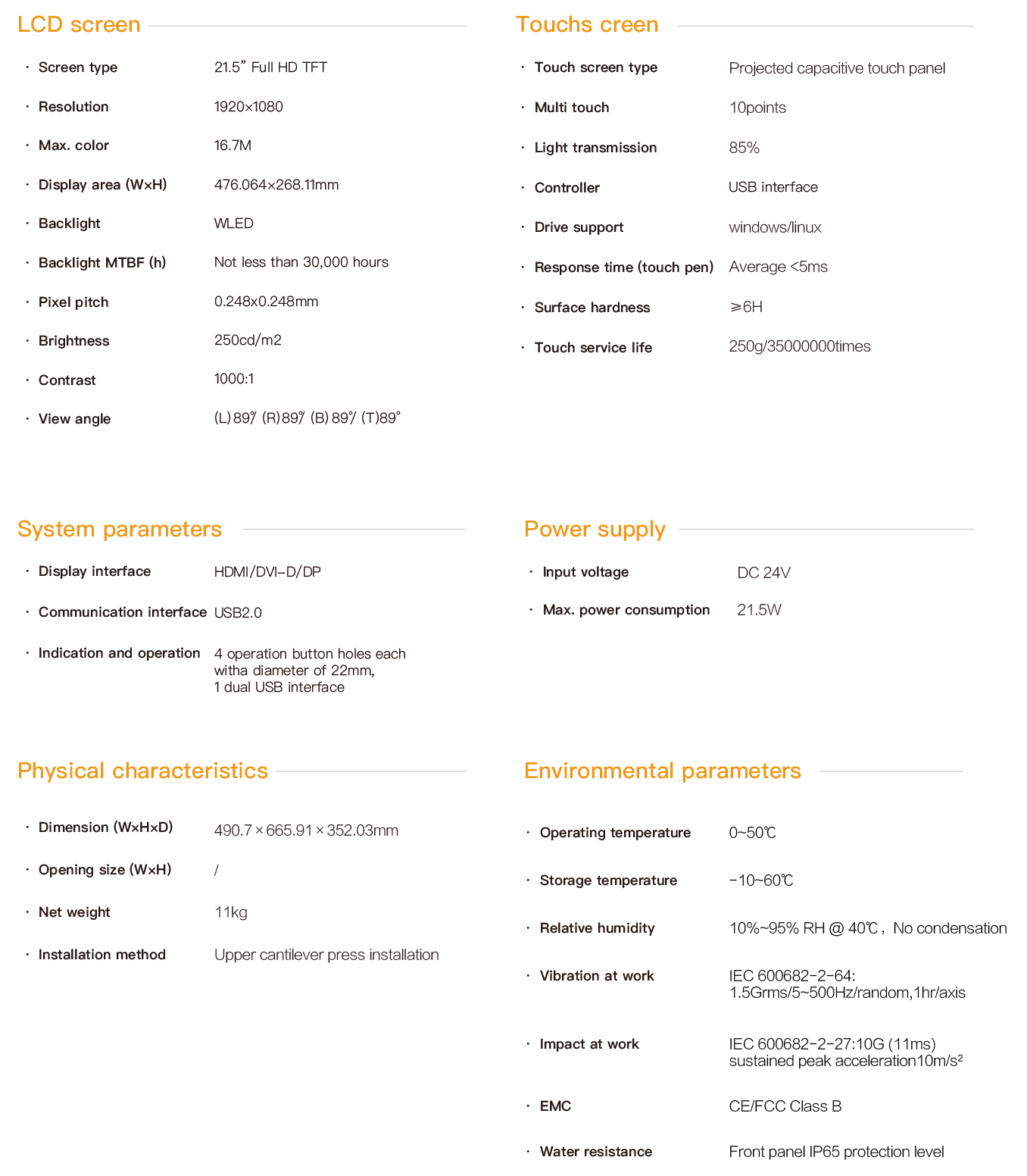

Product detailed specifications（PDS-6921)
